ホーム /製品/太陽光パネル/High Efficiency 340 345 350 355 360 380w Commercial Wall Mono Glass Cell Parts REC Power Solar Panel 166mmx166mm

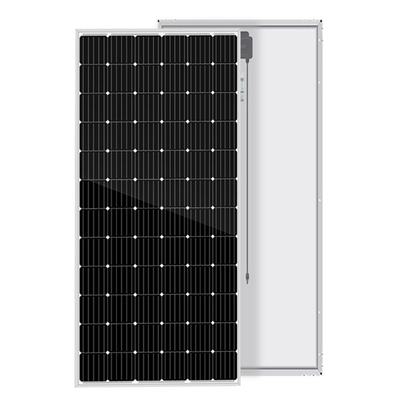

High Efficiency 340 345 350 355 360 380w Commercial Wall Mono Glass Cell Parts REC Power Solar Panel 166mmx166mm

100 Watts
MOQ
$0.24(100 - 9999 Watts) $0.21(10000 - 999999 Watts) $0.19(>=1000000 Watts)
価格
High Efficiency 340 345 350 355 360 380w Commercial Wall Mono Glass Cell Parts REC Power Solar Panel 166mmx166mm
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Model Number: SR330~380M-72
Cell size: 166mmx166mm
Type: PERC, Half Cell, Bifacial, Double-glass
Panel Dimensions: 1986*1002*50mm
Panel Efficiency: 17%
Certificate: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Warranty: 10YEARS
Junction Box: IP65 Rated
Frame: Anodized Aluminium Alloy
Front Glass: 3.2mm Tempered glass,Low iron
基本情報
証明: TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Model Number: SR330~380M-72
お支払配送条件
Packaging Details: Wooden case or carton pallet packing.
Supply Ability: 100000 Watt/Watts per Week
製品の説明
Product Description
Model Type
SR340M10-72
SR400M6-24
SR350M10-72
SR360M10-72
SR410M6-24
Maximum Power-Pmax(W)
340
345
350
360
410
Open Circuit Voltage-Voc(V)
46.91
47.13
47.29
47.2
50.4
Voltage at Pmax-Vmp(V)
38.17
38.39
38.59
38.9
10.6
Short Circuit Current-Isc(A)
9.41
9.48
9.55
9.79
42.3
Current at Pmax-Imp(A)
8.91
8.99
9.07
9.26
9.69
Module Efficiency-ηm(%)
17.54
17.8
18
18.5
20.38
Standard Test Condition(STC)
Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5
Details Images
Glass
> Antireflective glass > Translucency of normal luminance is increased 2% > Module efficiency is increased 2% > Self-clean function > Service life 25 years
Solar Cell
> High efficiency 5BB/12BB PV cell > Uniform color > Anti-PID > Germany standard Cell > Full test
Frame
> Stock-size > Silvery and black > thickness 30/35/40mm > stress test
Junction box
>Conventional standalone edition and engineering custom edition
> Quality diode ensures module running safety
> IP67 protection level
> Heat dissipation
> Long service life
Production Process
Cell Sorting
Cell Welding
Lay-up
EL Test
Lamination
Framing
Clean
IV Test
Packaging
Projects
Certifications
Company Profile
Company Profile
Jiangsu Sunrising New Energy Technology Co.,Ltd, is focusing on product development , production , system integration , sales and service . Products include solar cells,photovoltaic modules and systems design , VRLA Battery , Lithium Battery , solar charge controller, solar inverter and so on.We are located in Nantong city Jiangsu Province which is near to Shanghai port The annual production capacity of PV modules has increased 1GW by introducing the world's advanced automatic production line and testing equipment.
